Wooden windows IV 92 WINTHERM
Wooden windows IV 92 WINTHERM - modern, top-class energy-saving windows.
A massive 92mm thick profile, energy-saving glazing with a heat transfer coefficient of Ug = 0.5 W / m2K and three weatherseals guarantee high thermal comfort and real savings in your home.
Fittings and glazing can be supplemented or modified, thus achieving the desired parameters: improve comfort of use and increase anti-burglary and acoustic protection.
Wintherm windows can also be freely styled on cover moulds and transoms. The profiles can have the „Classic” or „Retro” shape and a wooden drip cap. As a result, they are used in both traditional and historical buildings.

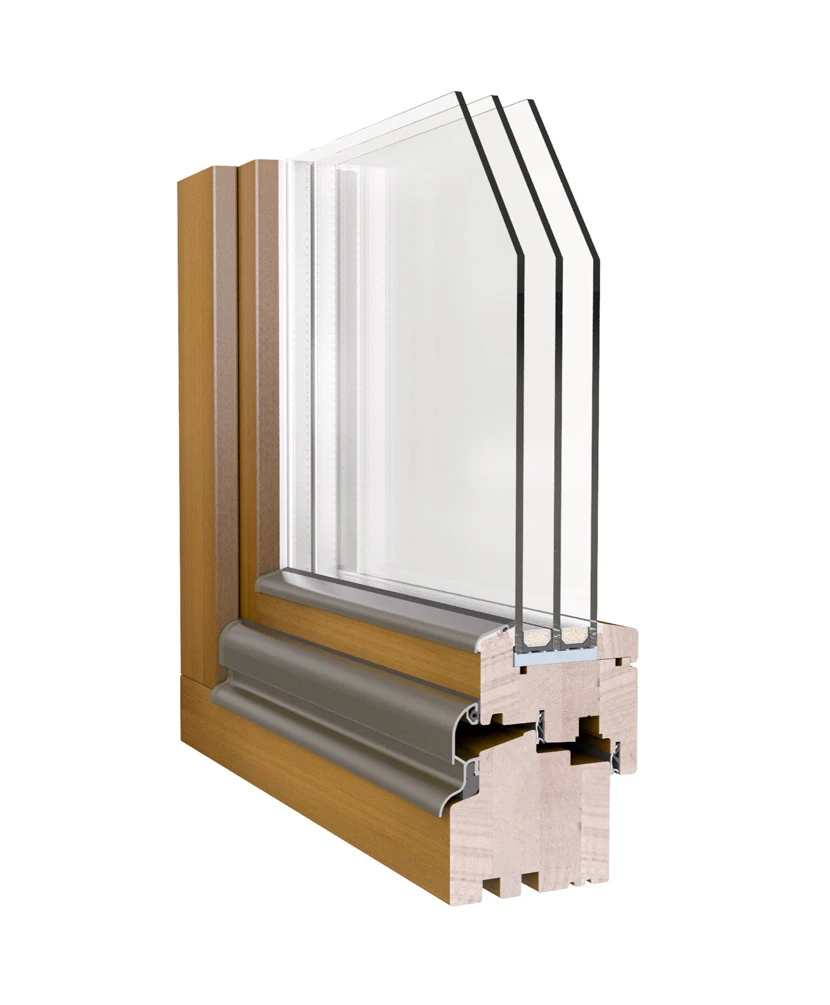

Window IV WINTHERM construction:
- profile thickness 92mm,
- high quality multilayer timber,
- REMMERS 4-coat painting system,
- energy efficient triple glazing unit Ug= 0,5 W/m2K,
- warm edge TGI,
- three weatherseals,
- aluminum drip at the bottom leaf,
- aluminum drip with thermal insulation at the bottom frame.
Opening types
- open IN,
- turn, tilt, tilt & turn, dummy sashes, direct glazed fixed in frame.
Timber
- pine, hardwood, other.
Surface coating
- micro porous paint or stain coating system,
- REMMERS 4-coat painting system.
Glazing
- triple glazed unit,
- Ug=0,5 W/m2K,
- warm edge TGI.
Hardware system
- MACO,
- microventilation,
- mishandling device.
Handles
- HOPPE Luxemburg Secustic,
- material: Aluminum,
- standard colours: satin chrome, old gold, white, dark brown.
Frame and leaf drips
- SOFT LINE ALURON,
- standard colours: white, anodize silver, anodize black-brown.
Hardware system
- high level of security class RC2,
- restrictors,
- balcony door catch,
- fanlight opener,
- hidden hinges.
Optional glazing
- ESG, VSG,
- ornamental glass, stained glass.
Bars type
- astragal bars 24mm with aluminum or plastic duplex upon customer’s request,
- structural bars (min. 65mm),
- stained glass.
Handles
- HOPPE handle with the key Secu100®,
- Other option upon customer’s request.
Other options/ additional elements
- decorative mouldings (transom, mullion),
- bottom frame timber drip,
- internal timber window boards,
- external aluminum window boards,
- trickle vents.
Production - photos
